Autoclave Troubleshooting Guide
More worry free / Less effort / More competitive
ESCO Autoclave Troubleshooting Guide: When sudden malfunctions or errors occur (common in labs, clinics, or urgent sterilization scenarios), this guide offers immediate solutions. It targets heating failures, startup issues, pressure fluctuations, and more to help you quickly resolve problems and minimize operational downtime.

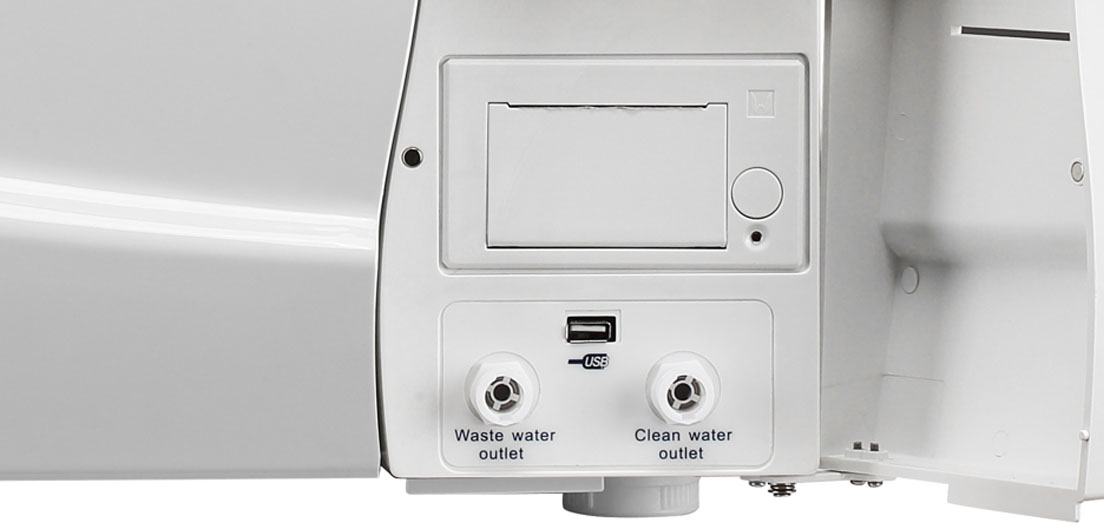

1. Dealing with a Clogged Drain
Problem: The drain isn’t letting water out, likely blocked by debris (like bits of glass, paper, or other stuff).
What to Try:
- First, try opening the drain valve. Then, grab an ear bulb (the kind for cleaning ears) or a syringe. Try to blow a puff of air into the drain line from the outside. Sometimes, this is enough to push out whatever is blocking it.
- If you think an agar spill caused the clog, it’s a bit different. You’ll need to run the sterilizer until it reaches 100°C, then stop the cycle. Make absolutely sure the pressure gauge reads 0 MPa before you carefully open the drain valve. Be cautious – things will be hot, so watch out for potential burns.
- Still Stuck? If neither of these methods works, it’s best to stop. Trying to force it might not be a good idea. It’s time to contact ESCO service engineer—or refer back to this autoclave troubleshooting guide for further direction.

2. Autoclave Stops Mid-Cycle
Problem: The machine suddenly stops during a sterilization cycle and shows an error.
Likely Cause: Often, this happens because the water level in the chamber got too low, triggering a safety cutoff.
Solution:
- Check the water level. Add more sterilizing water until it reaches the indicator mark. Then, simply restart the sterilization program.
- If it was a power outage: If the power cut out unexpectedly, you’ll just need to restart the sterilization cycle once power is restored. For more help, consult an autoclave troubleshooting guide like this one to ensure safe operation.
3. Autoclave Won’t Start Up
Problem: You try to start a cycle, but nothing happens.

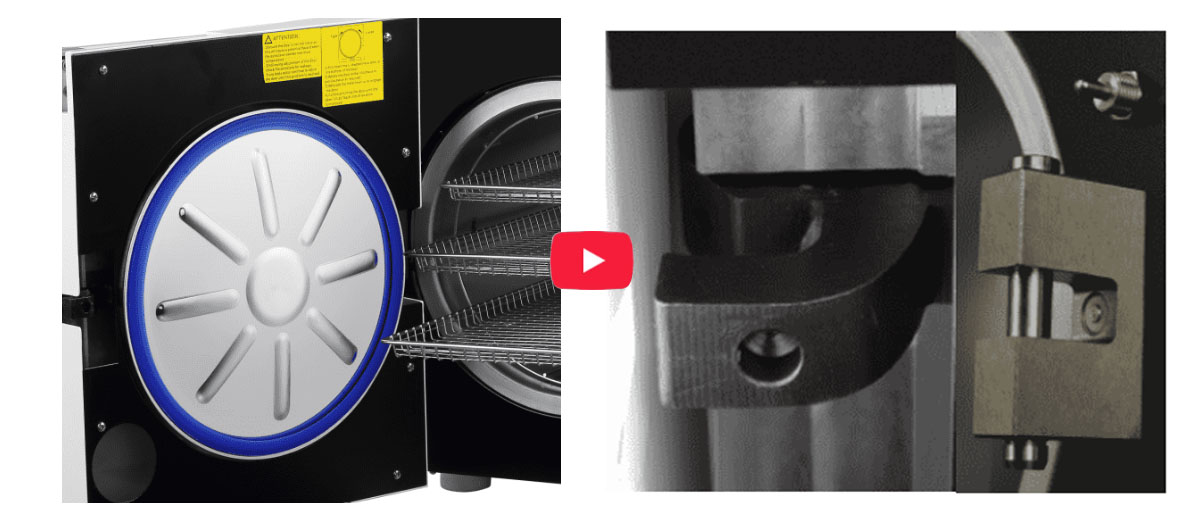

Check This First: The autoclave has a lid safety feature. If the lid isn’t closed and latched properly, it won’t start. Double-check that the lid is securely fastened, then try starting the program again.

4. Heating Issues
Problem: The autoclave starts, but it’s not heating up, or it can’t reach the target temperature (like 121°C). You’re sure there are no leaks, and maybe it even trips a breaker when you try to start a cycle.
Likely Cause: This sounds like a problem with the heating element.
Action: Don’t keep trying to run it. Contact a qualified service engineer right away to check it out and perform any needed repairs. This autoclave troubleshooting guide is a great first step before calling in professional help.
5. Gasket May Need Replacing:
- You Can See Damage: Look closely at the gasket. Are there visible cracks, nicks, or does it look stretched, flattened, or warped? Being under constant heat and pressure eventually takes a toll.
- Pressure Isn’t Stable: During a cycle, do you notice the pressure gauge fluctuating or having trouble staying steady? A worn gasket might be struggling to maintain the seal.
- Steam is Escaping: Can you hear a “hissing” sound or see steam leaking out from around the door while it’s running? That’s a definite sign the seal is broken.
- Sterilization Results Aren’t Right: Even if the cycle completes as programmed, if your sterilization isn’t effective (e.g., biological indicators still show growth), a failing gasket could be the reason.
- It’s Simply Old: Gaskets don’t last forever. It’s good practice to inspect it regularly. If it looks worn, feels brittle, or has been in service for a long time (check the manufacturer’s advice on lifespan), replacing it is a smart move.

How to Make Your Gasket Last Longer:
- Keep It Clean: Wipe down the gasket regularly to prevent dirt and residue buildup. A clean surface seals better.
- Quick Tip: Check it before each use, and give it a proper cleaning about once a week.
- Avoid Friction (Especially on Manual Models): If you have an autoclave with a hand-wheel to close the lid, make sure you unscrew it all the way to the top stop before swinging the lid open. This lifts the gasket clear off the chamber rim and prevents rubbing, which wears it out.
- Don’t Overwork the Machine: Always follow the operating instructions. Running the autoclave overloaded or for excessively long periods puts extra stress on all parts, including the gasket.

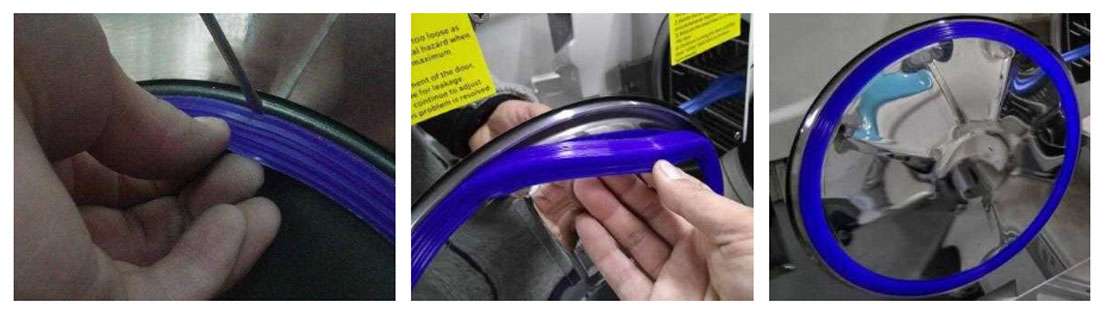

Quick Notes on Replacing the Gasket:
- Use the Right Part: Make sure you get the correct replacement gasket for your specific autoclave model. Using an official part from the manufacturer is usually best to ensure a proper fit and material.
- Install It Carefully: When putting the new gasket in, make sure it’s seated evenly in its groove, without being twisted or pinched.
Test After Replacing: Run a test cycle after installing a new gasket to confirm that it’s sealing correctly and there are no leaks. - Bottom Line: That gasket might be small, but it’s vital for good sterilization results and safe operation. Keeping an eye on it and replacing it when needed will help keep your autoclave working at its best.
6.ESCO Autoclave Other error codes
The sterilizer will give alarm, release pressure and stop heating automatically if it has any abnormalsituations during working. It will absolutely keep the user safe and display the error code (seebelow for chart for error code).
Write down the error code No. and cut offthe power, don’t open the door and then turn on thepower again to wait the pressure turn back to “_0 5-0 5
We suggest running one more time to see if the error happens again
If the user cannot find the resolution from the table, contact with seller or our service department.
Item | Code | Alarm | Reason | Resolution |
1 | E31 | “Du”long beep | Temperature in chamber >150°C | Check temperature sensor in chamber |
2 | E32 | “Du”long beep | Temperature outside ofthe heatingring>280°C | Check temperature sensor outside of the heating ring |
3 | E51 | “Du”long beep | Temperature in chamber e≤0°C | Check temperature sensor in chamber Check the temperature ofthe placewhere the sterilizer puton is below 0°C or not. |
4 | E52 | “Du”long beep | Temperature outside of the heating ring≤0°C | Check temperature sensor outsideofthe heating ring Check thetemperature ofthe place where thesterilizer puton is below 0°C or not. |
5 | E63 | “Du”long beep | 1、steam generator temperature≤0°C 2、steam generatortemperature>230°C;Steam temperature contro!instability, over 230°C, ste am generatortemperature sensor damaged | Check steam generator temperature sensor, control board,steam generator |
6 | E2 | “Du”long beep | The sterilization pressure over pre-set pressure+0 .4bar (134°Cprocess over 3.5ba (r absolutepressure)/121°C process over 2.5bar) vacuum unusually have many air remain in chamber. | Check vacuum pump Do a vacuum test |
7 | E61 | “Du”long beep | 134°Cprocess: innertemperature>140°C or 121°Cprocess: innertemperature >127°C; temperature control instability. | Check temperature sensor inchamber |
8 | E62 | “Du”long beep | Temperature outside of the heatingring>155°C; temperature control instabilitycontrol board damaged. | Ask professional check temperature sensor outside of the heating ring, control board, heating ring |
9 | E41 | “Du”long beep | In prehe at period, after 8min temperature outside ofthe heating ring<100°C heating circle damaged. | Check heating ring |
10 | E42 | “Du”long beep | In preheat period, after 8mins steam generator temperature <110°C; heating rod damaged. | Check heating ring |
11 | E5 | “Du”long beep | When the period of“sterilization” finished. Drain for 1Omins, the pressurein chamber still over 0.5bar; air relief instability | Check water drain valve |
12 | E6 | “Du”long beep | The door opened in sterilization period;the door detector switch damaged | Check door detector switch |
13 | E7 | “Du”long beep | The local air pressure value <7OKPa; | Can not use in these area Adjust atmospheric pressure:see 5.2 in page 15 |
14 | E8 | “Du”long beep | In rise period, every 5mins temperature rise <3°C | Check water pump, heatingrod, control board.Check water tank has enough water. |
15 | E9 | “Du”long beep | In sterilization period, the sterilization pressure below the preset pressure-0.3bar. | Check water pump, heatingrod, control board.Check water tank has enough water. |
16 | E10 | “Du”long beep | The electromagnet in wrong condition( power on, the electromagnet at close condition; process start, the electromagnet at open condition;process finished, the electromagnet at close condition) | check electromagnet, control board |
17 | E11 | “Du”long beep | The electromagnet at open condition during running; the port on controlboard which use to control electromagnet damaged | check control board |
18 | E12 | “Du”long beep | The vacuum not reach -70Kpa 2 times during the program which have 3 times vacuum | Check vacuum pump |
19 | E15 | “Du”long beep | The water quality system have problems | Check the water quality sensor and PCB |
20 | E16 | “Du”long beep | After sterilization, air cannot enter the sterilization chamber through the germ-tightflter | Change the germ-tight filter |
21 | E99 | “Du”long beep | The communication between CPU is wrong | Check control board data line.and CPU install |
